In 1939 Glenn D. Angle, from Detroit, Michigan, made a 5-cylinder, radial engine with 184 cubic inches of displacement giving 100 hp.

-This engine was built for the New Britain Machine Company in Connecticut.

-Though several powers are mentioned as the engine speed:

50 hp at 1,950 rpm.
-60 hp at 2,300 rpm.
-90 hp at 3,400 rpm.
y 100 hp at 3,800 rpm.

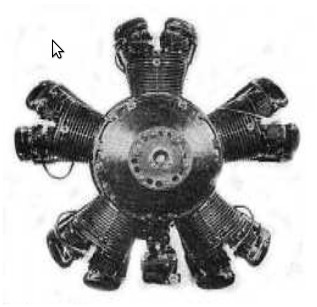

Angle radial engine
"Angle radial engine"

-Note from the author: Glenn D. Angle is also the author of the Aircraft Engine Encyclopedia(1921), a reference book for those interested in the subject.

-He also is the author of the book "Atmosphere-1939", which is considered as an actualization of the former one, after 18 years.

Engines of ANGLE

Model: Radial 5 cils. 100 HP
Angle Radial engine

"Angle Radial engine"

The author of this edition of Aeroengines AtoZ, through Aeroteca, collaborated on Version 2 of this video, which is presented here.

To understand the operation of the connecting rods, the 1929 Continental R 670 single-cylinder engine was chosen.

A demonstration of Version 3, improved at the author's suggestion, is also available on YouTube at a later date. This version shows bronze valve guides, improved valve spring movement, and the split crankshaft counterweights and front bearing balls also move.

The design is from Juan Soler, Sant Cugat, Barcelona

Below we show a flash of version 3

Counting also with the coloboration of JMC of Enginys Mecanics in Mataro, Barcelona
